LIXI SOLAR & ELECTRICITY STORAGE
Discover the power and reliability of cutting-edge LIXI battery technology. Our advanced lithium batteries are designed to meet electricity demands of modern life, offering unmatched safety, longevity, and efficiency. In combination with hybrid inverters, you can cover your daily electricity needs without having to rely on increasingly expensive, unreliable grid power. Now also available with an electricity-trading option over our CARBONOZ platform.DEUTSCH FRANCAIS
LITHIUM POWER
Whether you're storing renewable energy or looking for a battery backup, our LIXI batteries provide a sustainable and dependable solution. Join us in embracing a cleaner, greener future with the energy revolution that's transforming the world, one charge at a time.
Safety
Stable chemistry that reduces the risk of thermal runaway, making them less prone to overheating and catching fire compared to other lithium-ion batteries.
Long Cycle Life
Endure a high number of charge and discharge cycles, exceeding 8000 cycles, which translates to a longer lifespan.
PERFORMANCE
Stable voltage throughout the discharge cycle, which ensures consistent performance in various applications.
FULL SERVICE
LIXI has been rigorously tested under all conditions. As an additional layer of security, our tailor-made express service agreement for LIXI owners gives you peace of mind. The monthly subscription guarantees instant battery cell replacement in the unlikely event of a defect of your LIXI battery.

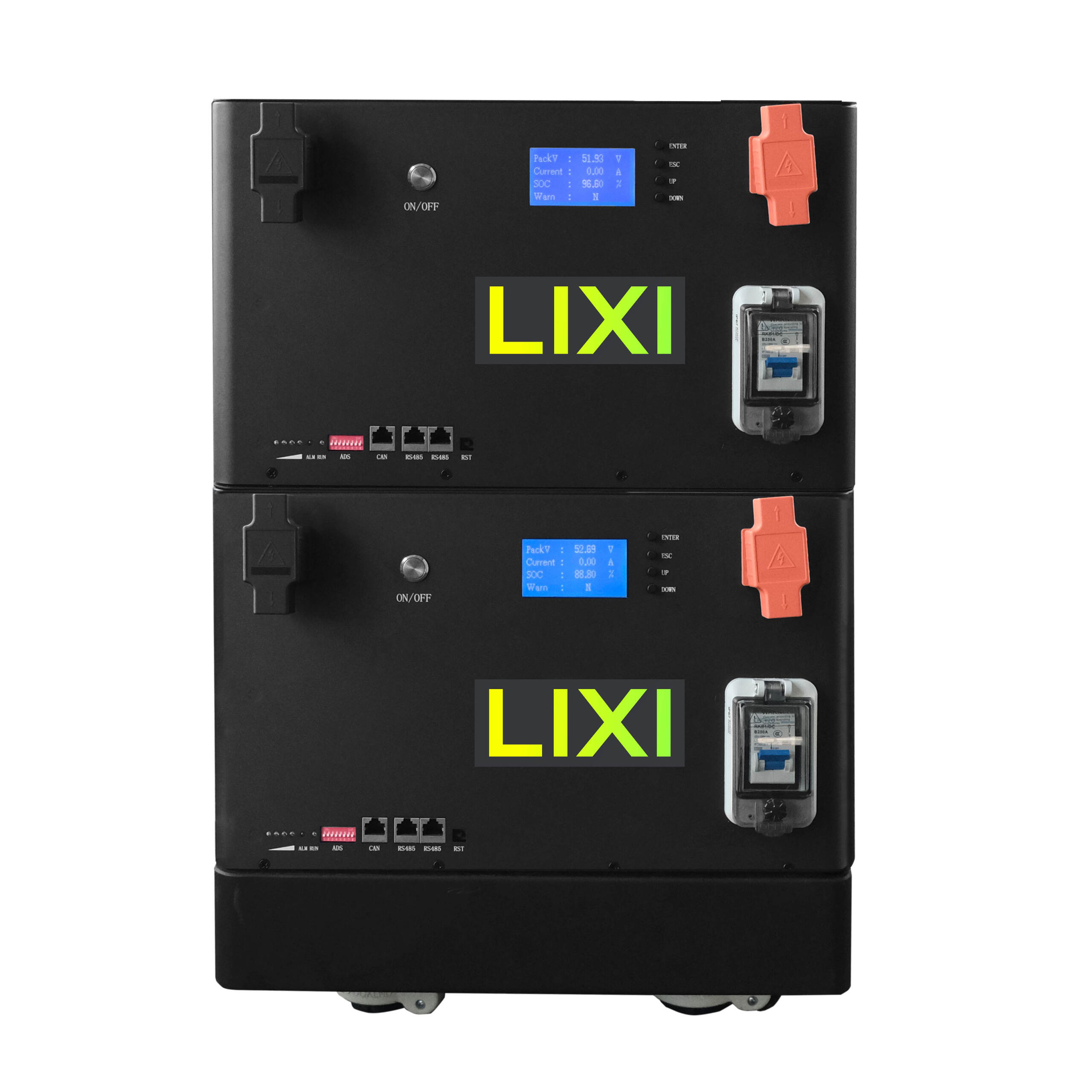

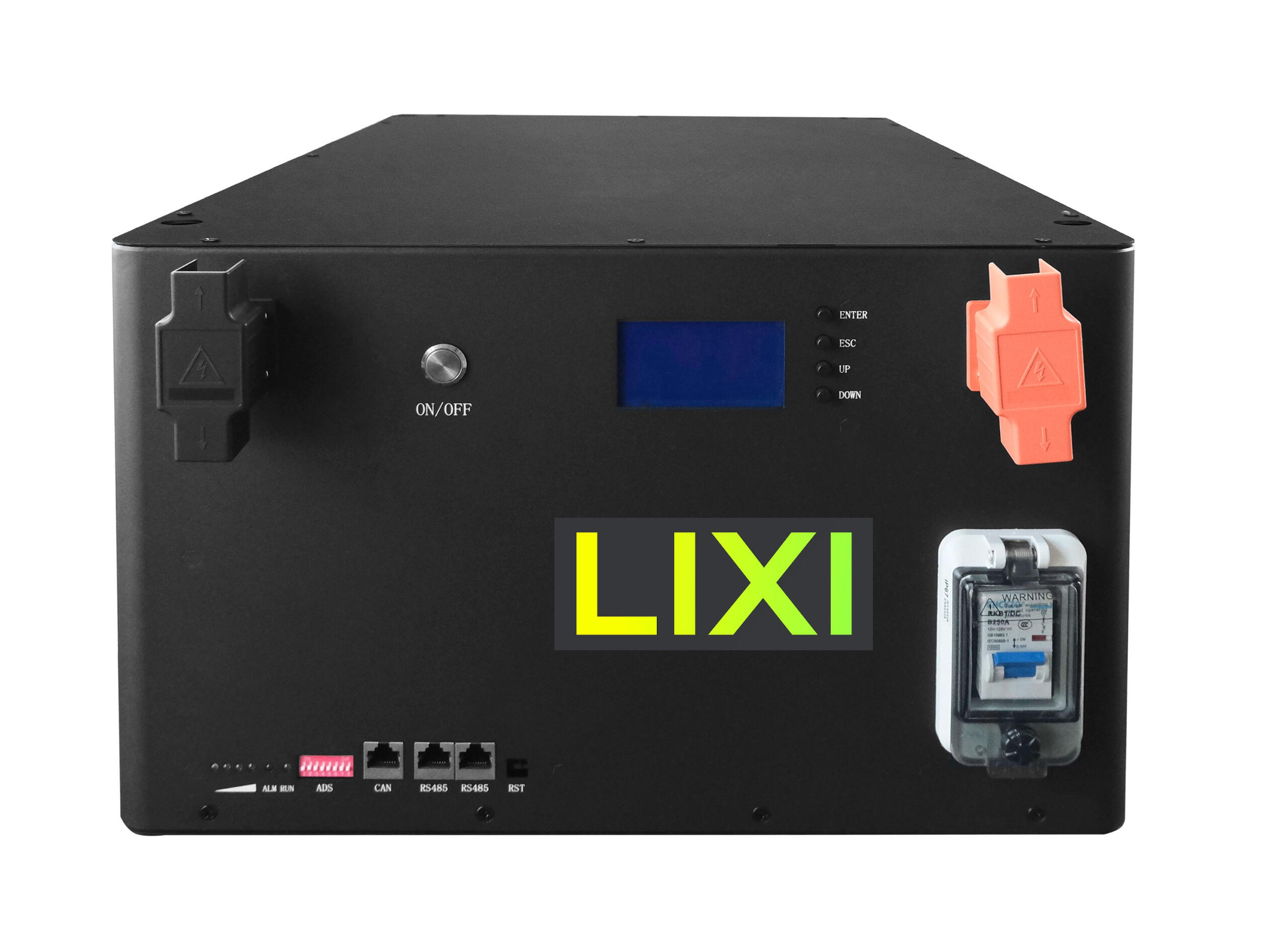

STACK IT
Stack up to 14 battery cases together
Material: Stainless Steel
Communication: CANBUS/RS485
JK BMS: 48V 16S BMS - PYLONTECH-protocol support
Nominal Voltage: 51.2V (200V coming soon!)
Current 200A
Warranty: 1 Years
Battery Pack Type: Stackable
Weight: 125kg / 275pounds
Size: 415 - 700 - 263mm / 16 - 27 - 10inch
Bluetooth and CAN-bus support for dedicated monitoring of the JK BMS.
Online Shop
Delivery to any EU country
Order your pre-configured and ready-to-use battery pack today and benefit from an off-grid power supply. Of course, we will support you in choosing the right inverter by making an appointment below and with the help of our easy to understand tutorials for wiring the inverters and the panels.
Paypal protected buy
For US / KY / MU orders contact our support below.

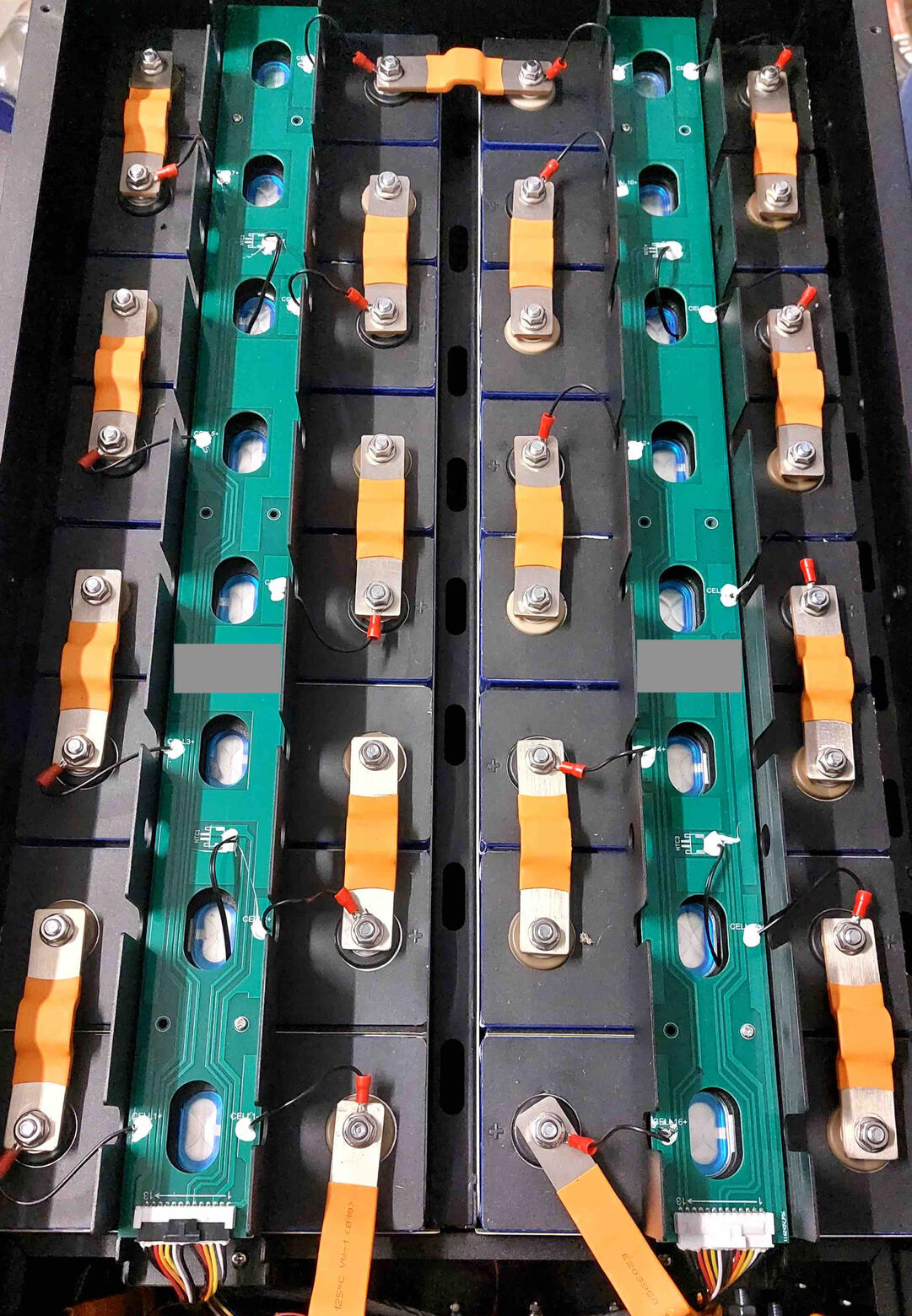

CATL BATTERY CELLS
We only use certified high-quality cells from CATL, the leading producer of lithium batteries:CATL invests heavily in research and development, leading to cutting-edge battery technologies. They heavily focus on improving battery efficiency, energy density, and safety.As one of the world's largest battery manufacturers, CATL benefits from economies of scale, which helps in reducing costs and increasing production capacity to meet global demand.CATL has established partnerships with major automotive manufacturers such as Tesla, BMW, and Volkswagen, positioning itself as a key player in the electric vehicle (EV) market.The company is committed to sustainable practices, including the development of recycling technologies and the use of renewable energy in its manufacturing processes.
TECHNICAL SPECS
High Performance Lithium phosphate batteries (LiFePO4 - LFP) 280K, 302K or 320K280K SPECS:Store 14 kWh per LIXI unit using the 280K cells. Correspondingly higher storage capacities with the 302K and 320K cells.Real capacity: >=287AhMinimum capacity: 280AhInternal impedance: 0.1~0.3mΩDimensions(L-W-H): 174-72-205mmMax Continuous Discharge Current: 140A (0.5C)Weight: 5.32±0.2kg (16x)Guaranteed Cycle life (80% DOD): 6000 cyclesCharging Temperature: -5 - +60°CDischarging Temperature: -30 - +60°C

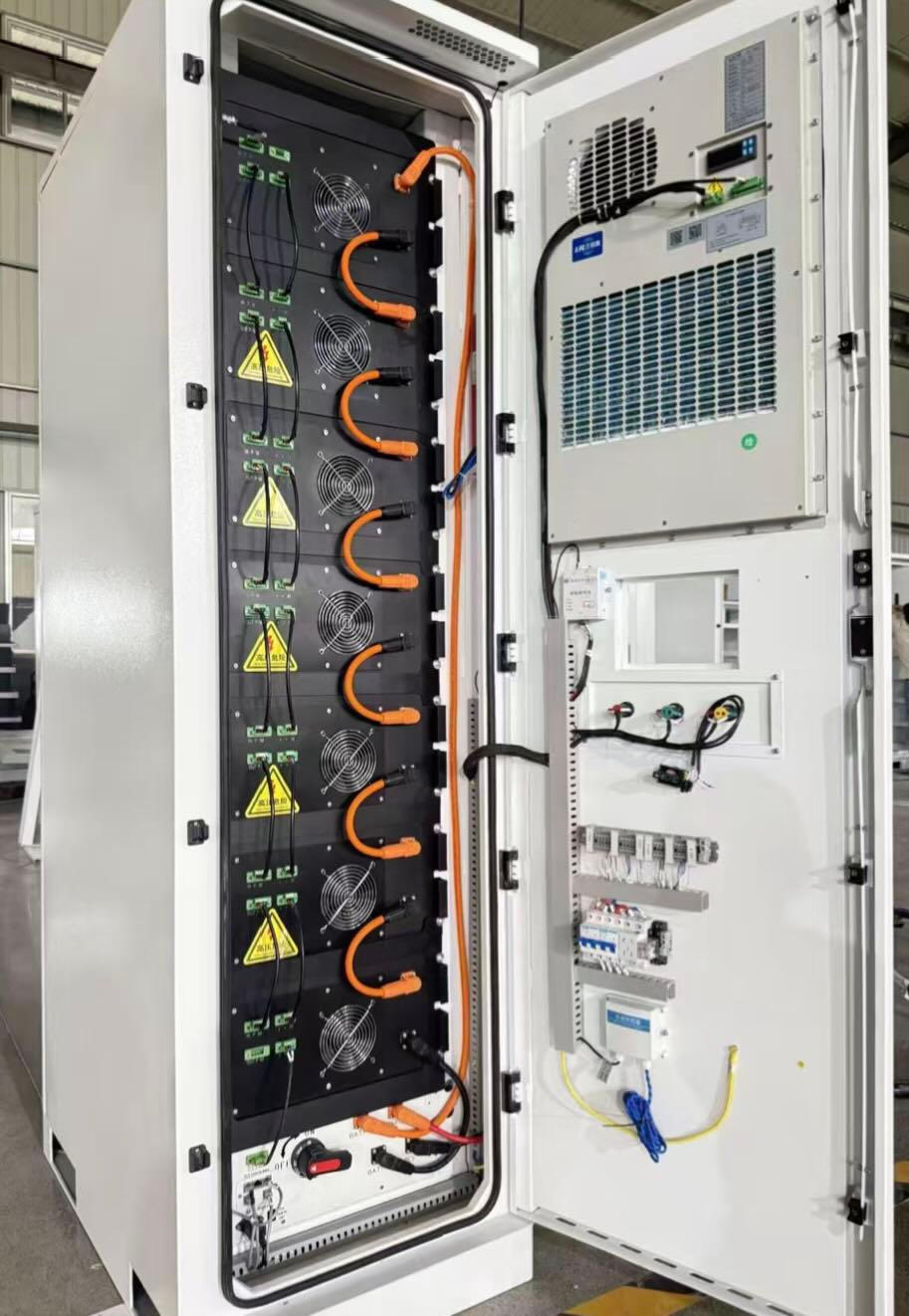

PRO RACK
The LIXI Rack is a high-performance, air-cooled 112.5 kWh lithium-iron-phosphate (LFP) energy-storage cabinet engineered for commercial, industrial, and micro-grid environments. It combines a long-life CATL-class cell architecture with an intelligent BMS, integrated safety features, and PV-hybrid operation. Our energy concept includes, among other things, the sale and trading of electricity on the energy exchange. This is particularly attractive for commercial PV installations that are no longer under subsidies. We help you repower older solar installations with minimal investment and give the system a new economic purpose through electricity trading.
TECHNICAL SPECS
Model: 50 kW – 112.5 kWh Air-Cooled Energy Storage Cabinet
Energy Capacity: 112.5 kWh
Cell Type: LiFePO4 (LFP), 3.2 V / 314 Ah cells
Battery Configuration: 7× packs in 1P16S arrangement, total 112.5 kWh
BMS: Master/slave architecture with full monitoring and protection
Cooling: Intelligent air-cooling system (air-cooled)
Nominal Voltage: 358.4 V
Voltage Range: 280–408.8 V
Recommended Operating Range: 313–403 V
Cell Capacity: 314 Ah
Max Charge/Discharge Current: 157 A
Rated Current (0.5C): 0.5C
Cycle Life: >8000 cycles (25 °C, 0.5C, 90% DoD, 70% EoL)
Communication: WiFi, 4G, LAN, CAN, RS485
HMI: LED status indicators + 7" maintenance display + WLAN/app interfaceENVIRONMENTAL CONDITIONSOperating Temperature: –25 °C to +55 °C
Storage Temperature: –30 °C to +60 °C
Relative Humidity: 5–95%
Max Installation Altitude: 4000 m (derating required above 2000 m)
Protection Rating: IP55
Noise Level: ≤75 dBMECHANICAL DATADimensions: 1510 (L) × 1010 (W) × 1830 (H) mm (without lifting hooks)
1905 mm (with lifting hooks)
Total Weight: ≤1500 kg
Design: Single-door cabinet with front-side maintenance access
Transport: Integrated forklift slots, 4-way handling capabilityBATTERY MODULESNumber of Packs: 7
Pack Configuration: 1P16S per pack
Weight per Pack: 100 kg ±5
Thermal Management: Air-cooling with dedicated airflow channelsSafety Functions:
– Overvoltage / undervoltage
– Overcurrent
– Short-circuit protection
– Temperature protection
– Insulation monitoring
– Leakage current protectionINTEGRATED PCS (INVERTER)Rated Power: 50 kW
Maximum Power: 80 kW (2 seconds)
Rated Current: 72–76 A
Maximum Current: up to 121.6 A
AC Grid: 220/380 V, 3/N/PEProtection Functions:
– Anti-islanding
– AC overcurrent protection
– AC short-circuit protection
– DC reverse polarity protection
– DC arc-fault protection
– Surge protection (DC/AC, Type 2)
TECHNICAL SPECS

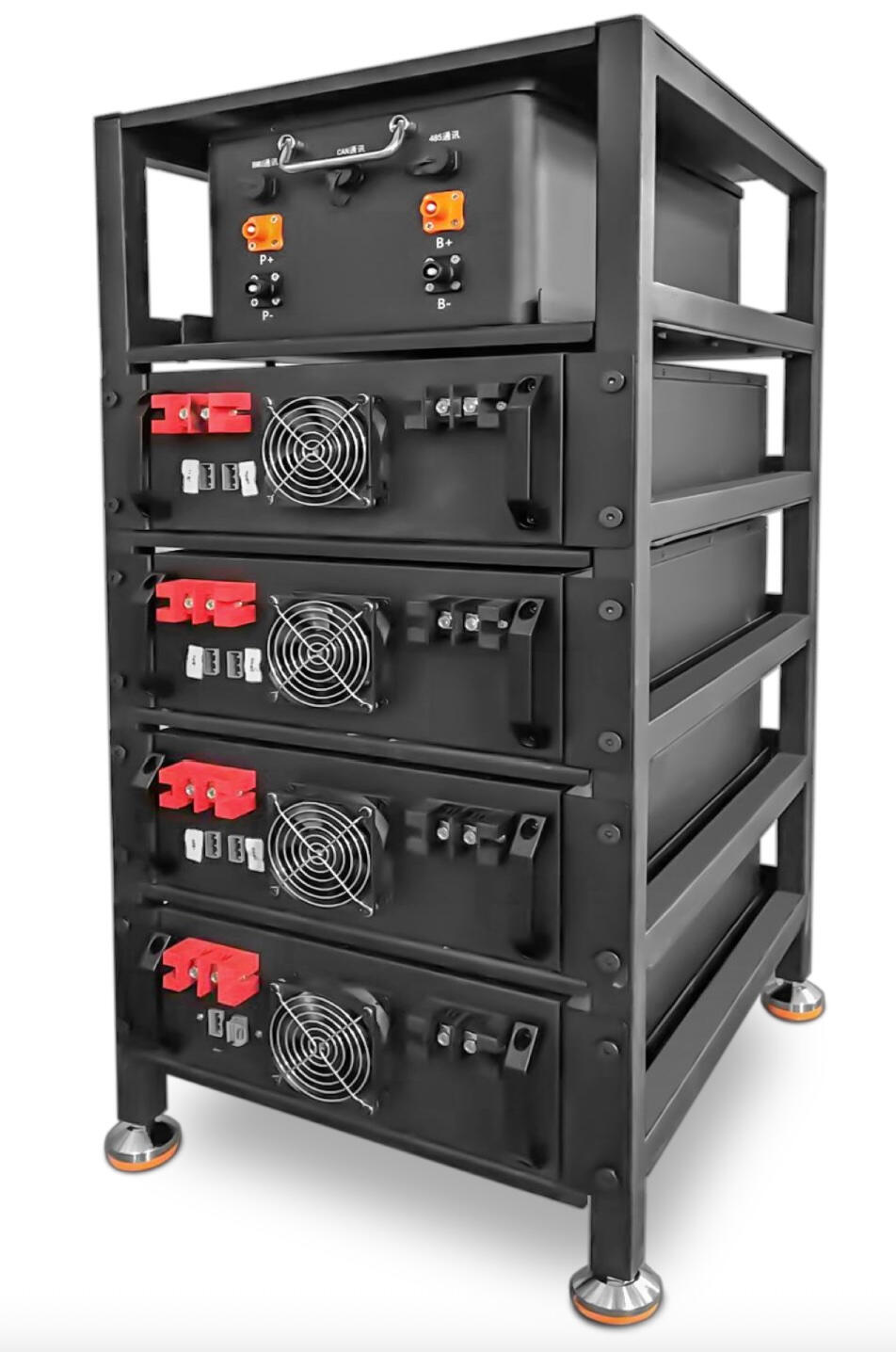

Model: 192V 100A-EJ-BUM
Energy Content: 20.48 kWh (4 battery packs of 51.2 V / 100 Ah)
Cell Type: LiFePOâ‚„ (LFP), EVE LF100LA
Configuration: 64S1P (4×16S in series)
BMS: EHVS500-BMU with active cell balancing
Cooling: Active air-cooling system with automatic fan controlELECTRICAL SPECIFICATIONSNominal Voltage: 204.8 V
Voltage Range: 160 V – 233.6 V
Nominal Capacity: 100 Ah
Max Charge/Discharge Current: 100 A
Standard Charge/Discharge Current: 20 A
Communication: RS485 / CANOPERATING CONDITIONSRecommended Temperature Range: 15 °C – 35 °C
BMS Sensor Temperature Range: –40 °C to +125 °CProtection Functions:
– Overvoltage / undervoltage
– Overcurrent
– Short-circuit protection
– Over-temperature protection
– Active pack-level balancing to extend lifespanMECHANICAL DATARack Dimensions: L 460 mm × W 550 mm × H 1018 mm
Total Weight: approx. 236.5 kg
Battery Pack Dimensions:
L 524 mm × W 360 mm (+45 mm connectors) × H 150 mmINSTALLATION & SYSTEM INTEGRATIONFour battery packs connected in series via high-voltage busbars
BMU enclosure positioned at the top of the rack
Pack-to-pack communication via serial connectors
CAN-based inverter compatibility (Deye, Growatt, Victron, GoodWe, SMA, Solis, etc.)
Parallel operation supported for up to 20 systems with automatic addressing
PERFORM
LIXI batteries deliver high current ratings, making them suitable for applications requiring high power output such as Solar-powered homes and backup power applications. They perform well over a wide temperature range and are more resilient to temperature extremes, both hot and cold.
ECO-FRIENDLY
Lithium phosphate batteries are considered more environmentally friendly due to their non-toxic and more recyclable materials. LIXI offers modular components including 16x individually replaceable battery cells allowing easy maintenance. This maximizes system lifetime and minimizes total cost of ownership (TCO). 48-volt batteries also offer the advantage that they can be maintained by anybody after a short safety briefing from us and do not require any certified high-voltage training.
INVERTER

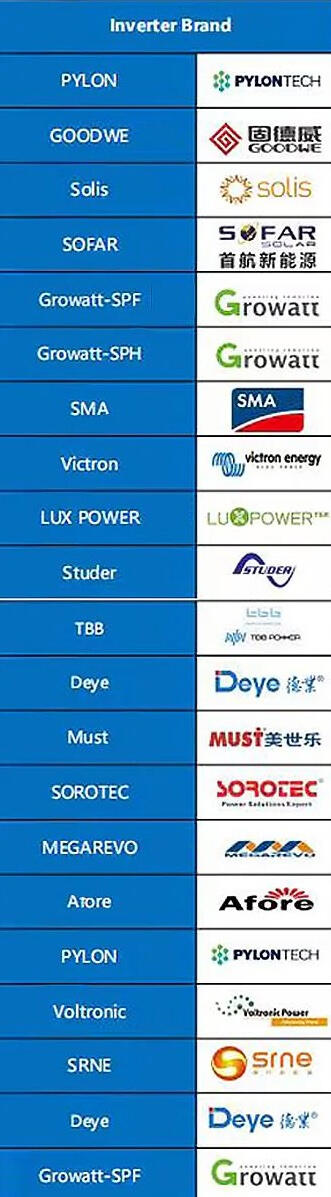

Recommended inverters are DEYE/Sunsynk, Growatt, MPP / Voltronic and Victron. Other supported inverters see below. Our team will also be happy to help you build your own system! We won't leave you on your own.
Contact us today and receive your individual quote:
Our assembly line, quality control and service center is located in the heart of Europe near Bonn / Cologne, Germany with experienced service partners in Europe, Africa and the Caribbean
